How to Attach a 3 Point Hitch to a Tractor?

How to Attach a 3 Point Hitch to a Tractor

konglingfang |

In modern agriculture, improving efficiency and productivity is the goal pursued by every farmer. As a key component of the tractor, the three-point hitch plays an indispensable role. It can firmly connect farm implements and can also adapt to different terrains and operations. In this article, landtopmall will explore the working principle of the 3 point hitch and how to properly connect the 3-point hitch to the tractor. Through this article, we hope to help farmers better understand and use the three-point hitch.

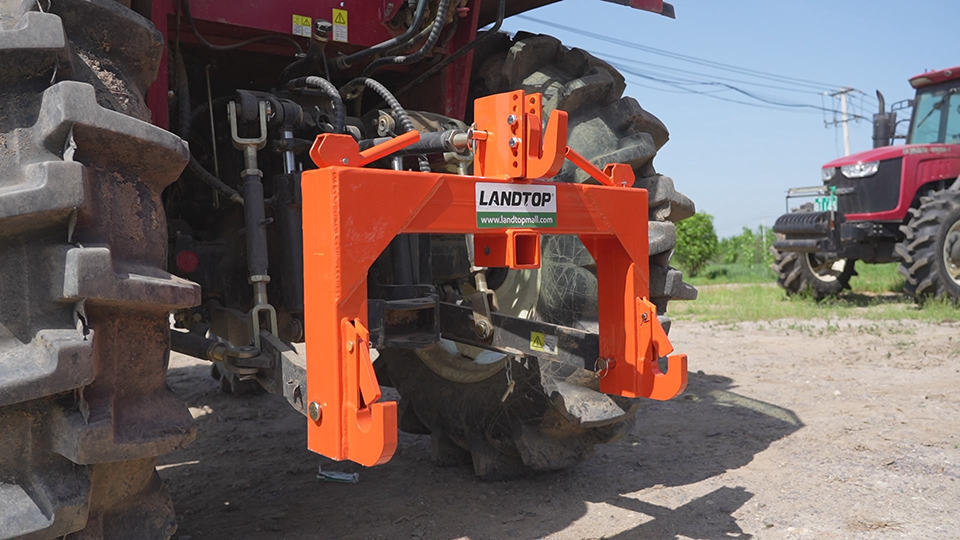

What Is a 3 Point Hitch?

The 3-point hitch is a simple connector between the tractor and the attachments in the agricultural machinery. It is widely used on various agricultural tractors. The main function of using it is to improve the tractor's pulling capacity. With three points of connection, the farm implement can better transmit the tractor's pulling force. The three-point hitch consists of an upper link and two lower links, forming a stable triangle structure. The upper link provides support and stability, while the lower links are responsible for transmitting the tractor's power to the farm implement.

The Main Functions of the 3 Point Hitch

1. Improve farmers' working efficiency. Through stable connection, the swing between tractor and farm implements is reduced.

2. Convenient connection and disconnection. The simple structural design makes connecting and disconnecting farm implements more convenient and quick.

3. High flexibility: suitable for many different types of farm implements.

How Does a 3 Point Hitch Work?

The three-point hitch closely connects the tractor and the implement through three connection points. This design allows the implement to move up and down and left and right within a certain range to adapt to the terrain and work requirements.

Main Working Steps of the 3 Point Hitch Device

1. Support Force Transmission

The support force is transmitted through the upper link to ensure the stability of the farm implements during operation.

2. Power Transmission

The lower link transmits the power of the tractor to the farm implement, enabling it to cultivate the soil or perform other operations.

3. Working Angle Adjustment

Adjusting the length of the upper link can change the working angle of the farm to adapt to different working conditions.

Advantages of 3 Point Hitch

1. The triangular structure reduces the shaking of the implement and enhances stability.

2. Precise angle and height adjustment ensures that the implement can operate in the best condition.

3. It is suitable for a variety of different agricultural operations, such as plowing, sowing, fertilizing, etc.

How to Attach a 3 Point Hitch to a Tractor?

After purchasing a tractor, the first thing to do is to learn how to connect the tractor 3-point hitch. Before connecting the 3-point hitch, park the tractor on a stable surface and inspect the various connection points of the hitch and implements for damage.

Step 1: Attach the Fixed Arm

Look at the back of the tractor first. You'll notice that there is a lift arm that moves up and down, and another that is fixed. Attach the fixed arm to the right side of the tractor first. Use the latch to adjust the height so it lines up with the tractor.

Step 2: Adjust the Attachment

Once the fixed arm is in place, adjust the movable lift arm. Adjust the lower link arm so it lines up with the hole in the implement. Then, adjust the length of the top link and slide the latch into the hole to secure it. Now the hook is connected and you can use the tractor to lift the implement.

Step 3: Adjust the Stabilizer

Adjust the stabilizer to prevent damage to the tractor tires. The stabilizer is an adjustment bar that runs from the tractor shaft to the lower link arm. If it is not adjusted, the attachment may dangle and even hit the tractor tire, causing damage. So remember to adjust the stabilizer to keep the attachment stable and protect the tire.

Step 4: Attach the PTO

Before installing the PTO, double-check that the tractor is off. Pull the collar open and slide it onto the shaft of the PTO until it fits into the groove on the shaft. Then release the collar and make sure it is securely installed. This completes the PTO connection.
